【导读】智能手机带来了电子产品世界的一场革命，它实用便捷，功能日趋强大，但是电池续航能力不足却让人头疼不已。在无法提高电池容量的前提下，无线充电给这个问题指出了一个方向，这里我们看一下顺络提供的无线充电线圈设计。

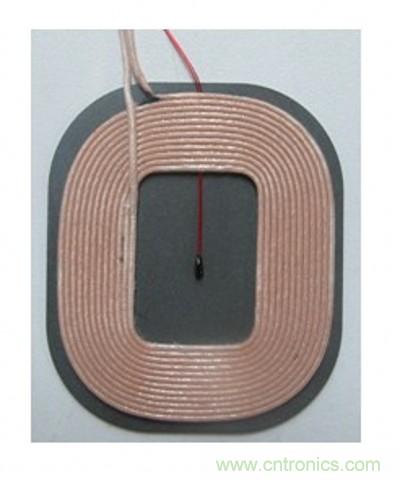

Wireless Charging TX- Coil
The size of new Tx - coil assembly（L*W*H） is 57*48.5*2.9mm for the function of wireless charging, which are made of Ni-Zn ferrite shielding materials and Litz wire winding. It is ideal for wireless charging transmitter coil assembly and increase the charging efficiency.
Background
Inductive Coupling: good coupling between two coils, a transmitter coil and a receiver coil. An alternating current in the transmitter coil generates a magnetic field which induces a voltage in the receiver coil. This voltage can be used to power a mobile device or charge a battery.
Features
Wireless charging transmitter coil assembly (Tx - coil)
Litz wire winding
Shield by Ni-Zn ferrite material
Compliance with Qi standard of WPC(Wireless Power Consortium)
Applications
Gaming devices
Mobile Phones
Battery or battery Chargers
Cameras
MP3 /PMP
MID`s
Hand Held Devices
